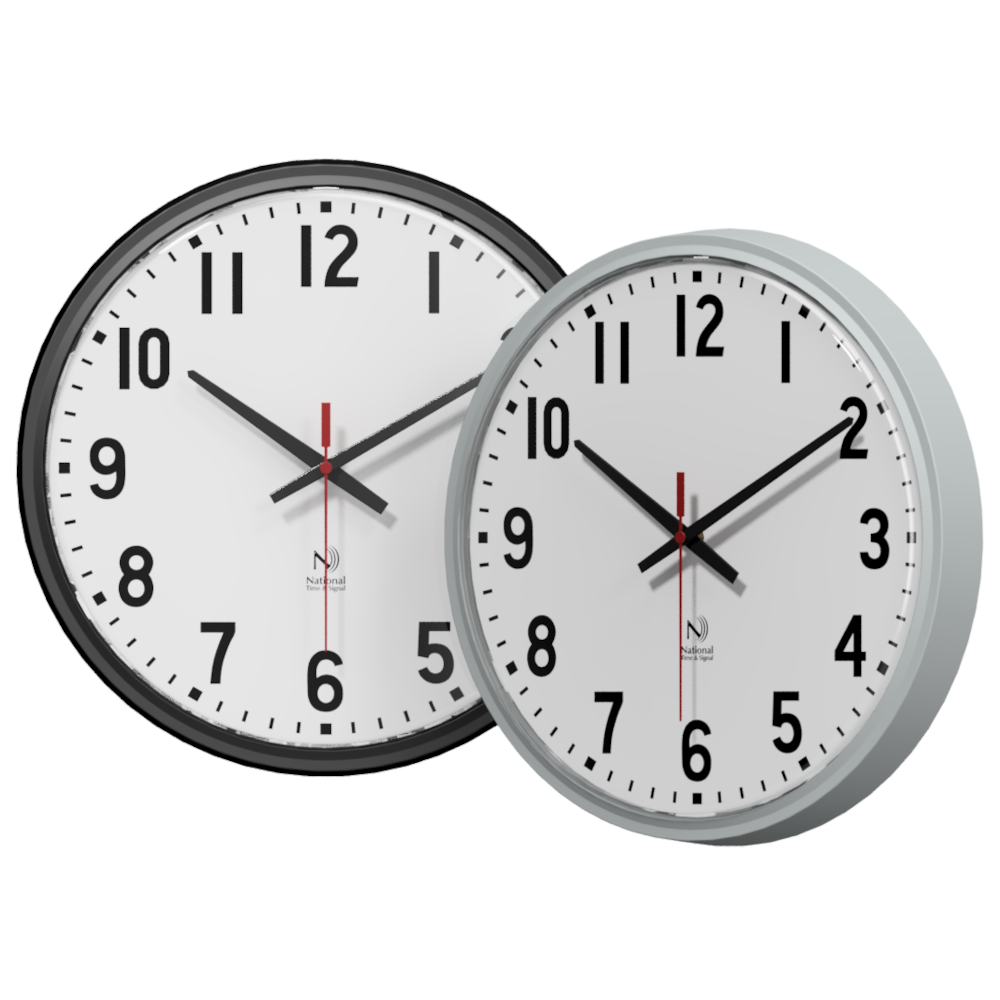

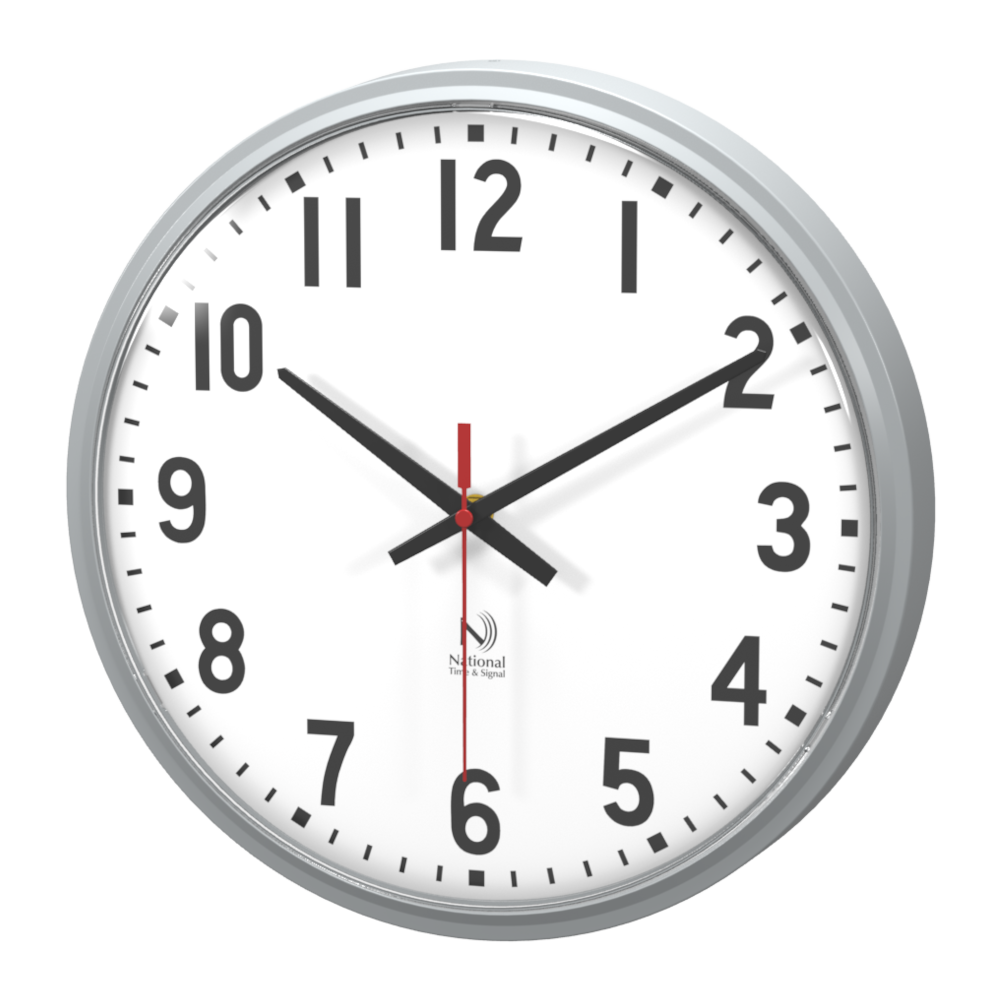

TimeCast™ Analog Clocks

The TimeCast™ analog battery-powered analog clocks make clock system expansion simple. Hang wherever a clock is desired without needing additional system wiring.

Features

  • No Additional Need for System Wiring

  • Energy Efficient

  • Battery Powered With Wired Power Option

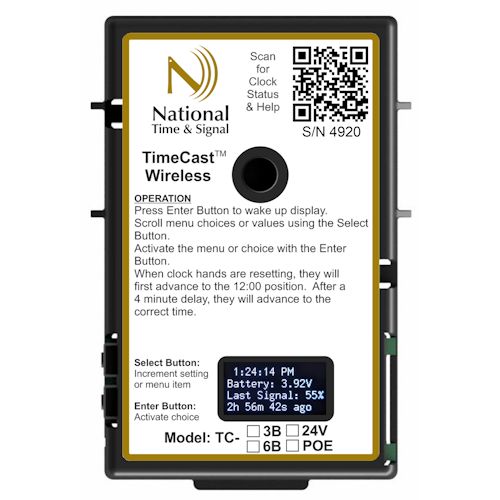

  • Include National Time's Exclusive User Display Interface

  • Comes in two Sizes; 12" and 16"

  • 12" Clock Cases Have a Shatterproof Polycarbonate Lens

  • 16" Clock Cases Have a Steel Case With a Shatterproof Lens

  • Cases are Available in Black or Grey

  • Standard White Dials

  • Black Numerals and Markers

  • Can Have Custom Dials and Logos

More Details

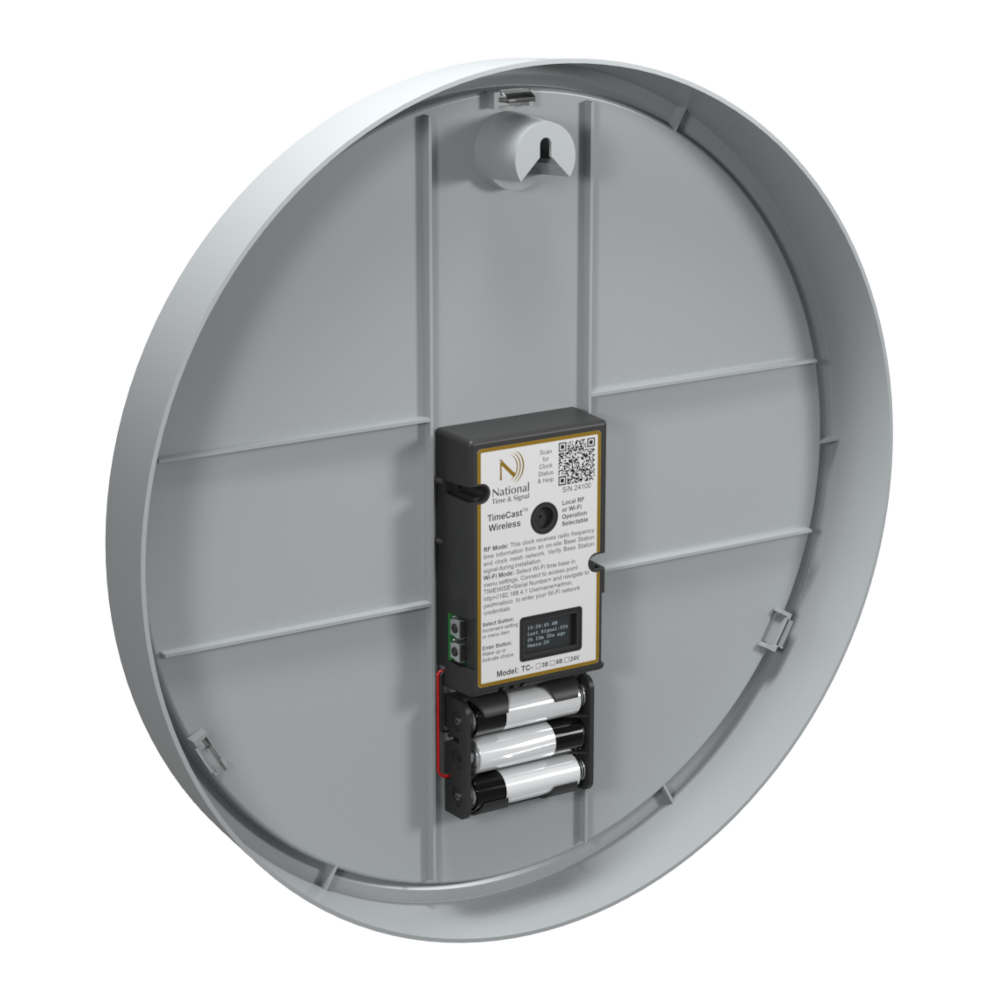

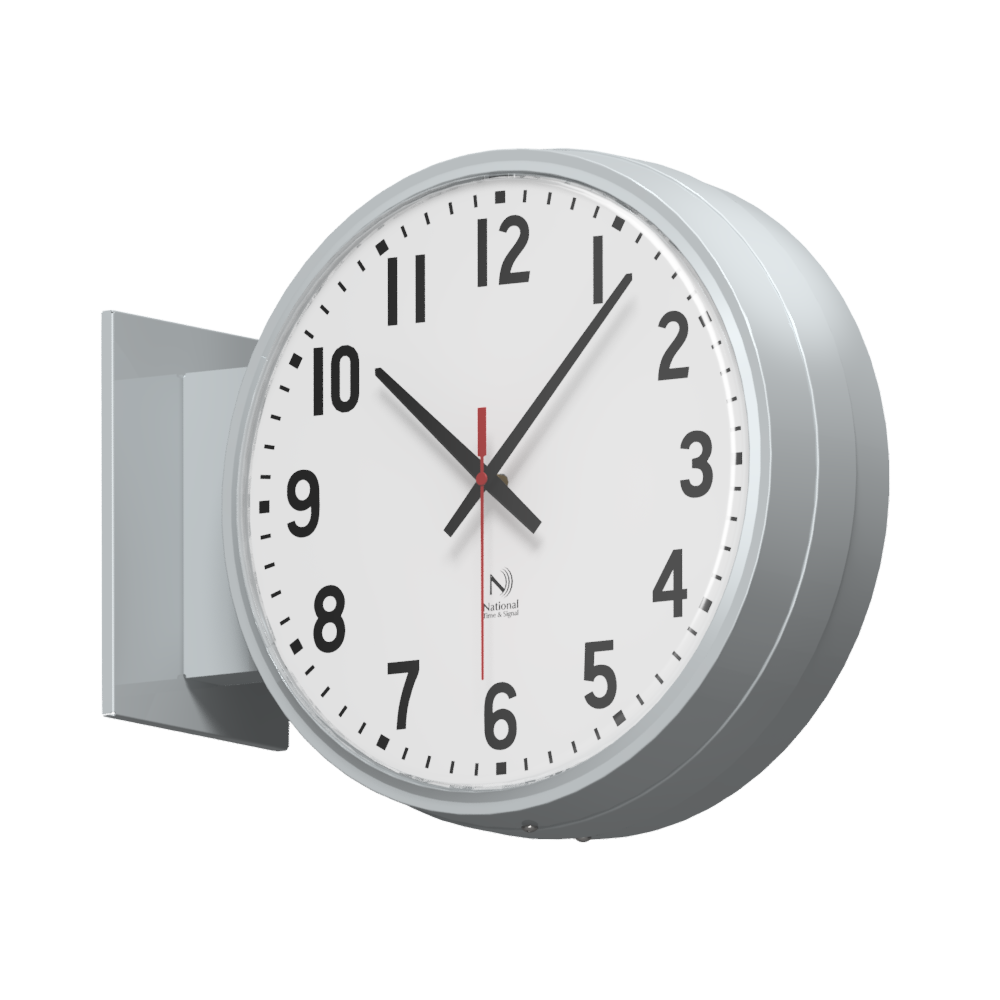

The TimeCast™ analog battery powered analog clocks make clock system expansion simple. Hang wherever a clock is desired without the need for additional system wiring. These energy efficient clocks have a life expectancy of 2.5 years on (3) AA batteries and 5 years with the six battery option.... When battery maintenance is not desired, order the 24V wired version. The 24V version can be powered with 24VAC or 24VDC. These can leverage easier to install low voltage power-limited wiring for less costly installation. For line voltage 120V installations, there is a choice of a hard wired transformer that fits in a standard electrical box or a wall transformer that plugs into a nearby standard outlet. Double face clocks can share a single transformer. All versions include National Time’s exclusive user display interface to simplify installation and troubleshooting. The clock cases come in two sizes: 12” and 16”. The 12” clock cases have durable ABS case with shatterproof polycarbonate lens while the 16” clock cases have steel case with shatterproof lens. Double face clocks have a sturdy steel mounting ring and bracket. Cases are available in black or grey. The dials are standard white with black numerals and markers. Contact the factory for custom dials and logos for your school or business.

Specifications and Related Literature

# Doc. Num. Name/Description File size View / Download
1 617 TimeCast™ System Information 3,324 KB View
2 626 TimeCast™ Analog Clocks Datasheet 2,257 KB View
3 620 TimeCast™ Setup Guide 1,784 KB View
4 622 TimeCast™ Analog Mounting Instructions 1,419 KB View
5 21048i Wiring Instructions 120V Single Face Analog (D2.5T-BC-AS) 152 KB View
6 12325i Wiring Instructions 120V Double Face Analog (D5T-BC-AD) 159 KB View
