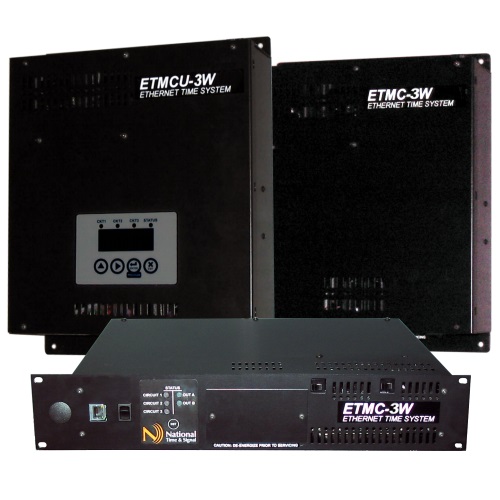

ET Series Master Clocks

Our next generation technology eliminates the complexity and high cost of today’s PoE approach and delivers the simplest, most affordable and greenest answer to reliable, precise time throughout your facility, your campus or your worldwide operations. Available in easy to install wall mount and rack mount models with built-in power supplies.

ETMC-2W

  • Ethernet Time Master Clock

  • Consumes only one IP network address

  • Powers and controls Ethernet time room clocks on two wires

  • 2 Power/Data outputs for up to 80 clocks each

  • User-friendly web browser interface

  • Two relay outputs for scheduled events (bells, tones, etc.)

  • 2U standard 19" rack mounting

  • Small footprint 11"x13.5" wall mount

  • Control output for Booster Power Supplies

  • ETMCU-2W Wall Mount adds Time Display and user interface

  • Made in the U.S.A.

ETMC-3W

  • EtherSync with local SNTP time server or NIST

  • Two 75 Watt Class II 24VAC Outputs

  • User-friendly web browser interface

  • Relay output for scheduled events (bells, tones, etc.)

  • Control output for Booster Power Supplies

  • 2U standard 19" rack mounting

  • Small footprint 11"x13.5" wall mount

  • ETMCU-2W Wall Mount adds Time Display and user interface

  • 120VAC and 240VAC 50/60Hz Models Available

  • Made in the U.S.A.

ET-RPS6-2W

  • Availble in either 2-Wire or 3-Wire versions

  • Controlled by ETMC-2W or ETMC-3W Series control cable

  • Consumes no IP network address

  • 2W Version Adds 2 Power/Data outputs for up to 80 clocks each

  • 3W Version Adds 1 Circuit of Run/Reset power (3.12A each)

  • May be controlled locally in same Rack using control output

  • May be installed remotely to extend Power/Data or Run/Reset circuits

  • 2U standard 19" rack mounting

  • Small footprint 11"x13.5" wall mount

  • Made in the U.S.A.

Variations

  • ETMC-2W

    Our next generation technology eliminates the complexity and high cost of today’s PoE approach and delivers the simplest, most affordable and greenest answer to reliable, precise time throughout your facility, your campus or your worldwide operations. Wall mount and rack mount versions available.

  • ETMC-3W

    Simply plug into a local area network (LAN) and a power outlet to install. Class II power limited outputs can control a conventional 3-wire clock system. Synchronize the time with the National Institute of Standards and Technology (NIST) or local time servers using the LAN. One relay output is available for auxiliary event programming such as bells or tones and is easily programmable using National Time’s WeCan™ browser based interface from any computer.

  • ET-RPS6 Power Supplies

    Add additional power to the ET Series Master Clock with these Remote Power Supplies. Available in wall mount and rack mount and simply plug into a standard power outlet. These can also be used to extend a National Time conventional 2-wire clock system of DLU and RDS clocks or the 3-wire version can be used with conventional synchronous systems by National Time or others.

More Details

ETMC-2W

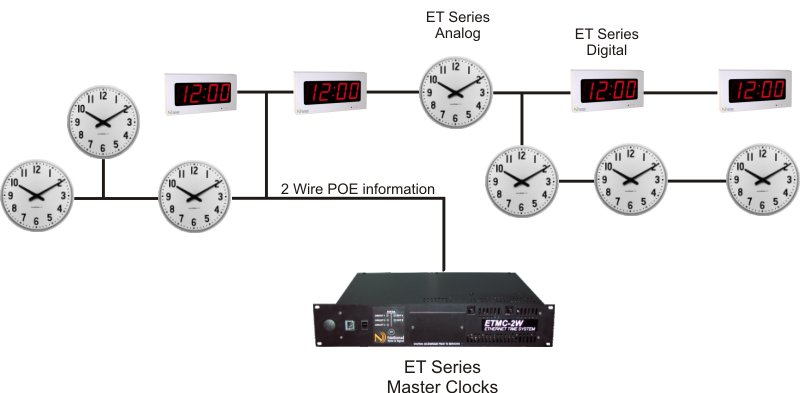

Introducing National Time’s Ethernet Clock System – the future of accurate time display for Schools, Hospitals and Industry. Our next generation technology eliminates the complexity and high cost of today’s PoE approach and delivers the simplest, most affordable and greenest answer to reliable, precise time throughout your facility, your campus or your worldwide operations. Our PoE technology delivers power and ethernet data using only two wires without dedicated wire runs per clock!...

ETMC-3W

Introducing National Time’s ET Series Master Clock – the future of accurate time display for Schools, Hospitals and Industry. The easiest to install and operate UL Listed master clock in the industry. Simply plug into a local area network (LAN) and a power outlet to install. Class II power limited outputs can control a conventional 3-wire clock system. Synchronize the time with the National Institute of Standards and Technology (NIST) or local time servers using the LAN. One relay output is available for auxiliary event programming such as bells or tones and is easily programmable using National Time’s WeCan™ browser based interface from any computer. ETMCU Series adds an LED time display and user interface to set the time without LAN connected.

DU-ET CTRL Switch Control

These installer friendly power supplies are available in wall mount or standard 19" rack mount versions. Simply plugs into a standard wall outlet and provides (2) Class II 3.12A 24VAC outputs. These supplies can operate by linking a control cable from one of our ET Series Master Clocks or can function as a remote booster supply by connecting to an existing 24VAC clock circuit. These supplies are available in either 2-Wire or 3-Wire versions depending upon your type of clock circuit. LEDs indicate circuit activation with additional indicators of actual output health to ease diagnosis of circuit problems. Built-in circuit breakers are easily accessible for overcurrent protection.

Specifications and Related Literature

# Doc. Num. Name/Description File size View / Download
1 503 ETMC-2W Spec Sheet 327 KB View
2 533 ETMC-3W Spec Sheet 321 KB View
